DCN DCRS-9816 is high performance wire speed chassis switch. DCRS-9816 has 18 slots, including 2 management slots and 16 business slots. With redundant power supply, fans and management modules, the DCRS-9816 ensures continuous operation and fully redundant system. The DCRS-9800 series serves campus and data center networking requirements in enterprise, commercial, and service provider environments.
Product Features
Performance and Scalability
- DCRS-9816 supports up to max 320*10G ports or 384 Gigabit ports, providing flexibility and high port density.
- 10G blades support max 20 ports for downlink to distribution layer switches or access switches directly, aggregating them to the core layer, and preventing port bottlenecks in Gigabit switches. Furthermore, the optional 10Gigabit Ethernet SFP+ transceivers can be chosen for different distance fiber uplinks.
- Backup Master ensures the availability of a master controller for network control at any time.
- Firmware & configuration are automatically upgraded from master to slave units for management simplicity.
- Intensive protocol support is included for MPLS, L2/L3 MPLS-VPN supported by a software upgrade to ensuring future investment protection.
OpenFlow
- Supports OpenFlow1.2 standard protocol. OpenFlow network is increasingly becoming a trend as the core protocol of the SDN network. It makes the network easier programming. OpenFlow brings high performance to datacenter users via a self-defined network. With OpenFlow, this product is ideal to build SDN test-bed for research institutes and SDN Experimental Bureau for large ISP and operator.
- Support open controller OpenDaylight, Floodlight, Ryu, Pox, etc.
Continuous Availability
- IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence.
- IEEE 802.1s Multiple Spanning Tree Protocol runs STP per VLAN base, providing Layer 2 load sharing on redundant links.
- IEEE 802.3ad Link Aggregation Control Protocol (LACP) increases bandwidth by automatically aggregating several physical links together as a logical trunk and providing load balance and fault tolerance for uplink connections.
- IGMP snooping prevents flooding of IP multicast traffic and limits bandwidth-intensive video traffic only to the subscribers.
L3 Features
- The DCRS-9800 series delivers high-performance hardware-based IP routing. RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches or routers within the same domain and different domains. DVMRP, PIM-SM/DM, Multicast Routing Protocols send IP multicast traffic from one subnet to another. VRRP prevents your system from failing by dynamically backing up multiple L3 virtual routing. Support OSPF and BGP graceful restart to protect network stability.
Strong Multicast
- The DCRS-9800 supports abundant multicast features. The product support rich L2 multicast features such as IGMPv1/v2/v3 and snooping and L3 multicast protocols such as DVMRP, PIM-DM, PIM-SM, and PIM-SSM. As a rich application experience, the product support Multicast VLAN Register and Multicast Receive Control and Illegal Multicast Source Detection function.
Easy High-Reliability Network
- MRPP (Multi-layer Ring Protection Protocol), is a link-layer protocol applied on Ethernet loop protection which reduces network convergence time to 50ms.
Product Specifications - Specification
DCN - DCRS-9816 is designed to deliver high-performance wireless networking solutions with advanced features for seamless connectivity and management.
| Items | DCRS-9816 |
|---|---|
| Slot | 2 management slots/16 business slots |
| Business Ports | 10/100/1000Base-T: MAX 384 1000Base-SX: MAX 384 1000Base-LX: MAX 384 10G: MAX 320 |
| Performance |
Switching Capacity: 1.52Tbps
Forwarding Rate: 857Mpps
MAC Table: 288K~400K
Routing Table: MAX 16K
VLAN Table: 4K
|
| Forwarding |
Storage and Forwarding IEEE802.3(10Base-T)/IEEE802.3u(100Base-TX)/IEEE802.3z(1000BASE-X)/IEEE802.3ab(1000Base-T)/IEEE802.3ae(10GBase) Loopback Interface, 9k Jumbo Frame, Port Loopback Detection, LDP and LLDP-MED |
| L2 Features |
|
| Tunnel Technical | Manual Configure IPv4/IPv6 tunnel: 4 Tunnels, ISATAP Tunnel, GRE Tunnel |
| MPLS | 255 VRF/VFI/LDP, MPLS VPN, MPLS QoS, 8 Hardware Queues per port |
| QoS |
|
| ACL |
|
| ACL-X |
|
| Anti-attack and Security |
|
| DHCP | DHCP Server for IPv4 and IPv6, DHCPv6 and DHCP Snooping v6 |
| DNS | DNS Client/DNS Proxy |
| Ring Protocol | MRPP (Multi-Ring Protect Protocol) |
| Access Security | 802.1X, Port, MAC, username based. Account-based on time length and traffic. Guest VLAN and Auto VLAN. Work with a private client, can manage P2P traffic, MAC Based AAA (Client free access), PPPoE/PPPoE+ forwarding |
| AAA | RADIUS AAA for IPv4 and IPv6, TACACS+ AAA |
| Management | CLI, Telnet, WEB, SSH and SSL |
| Configuration and Management |
SNMPv1/v2c/v3, MIB RMON 1, 2, 3, 9 |
| Power Saving Technology | Reduce power consumption, improve cooling and reliability. Flexible fan and port management to save power consumption |
| Syslog | Save Syslog and Trap to local device or server. Max. 8 servers for Syslog or Trap receive |
| NMS | Access the switch through AAA or Local Authentication. SNTP and NTP |
| Supervision and Trouble Shooting | Setup Time Zone and Summer Time. Supervise abnormality of task, memory, CPU, stack, switch chip, temperature and raise an alarm. SFlow/IPFIX (IP Flow Information Export), Ping and Traceroute |
| Configuration Management | Configuration file storage, Command operation log, Dual Images and files startup, FTP/TFTP server or client upgrade, X-modem protocol transfer the file |
| OAM | 802.3ah/802.1ag |
| Physical Dimension (W x D x H) | 440mm x 450mm x 84.2mm (19U) |
| Relative Humidity | 10%~90%, non-condensing |
| Storage Temperature | -40°C~70°C |
| Operating Temperature | 0°C~40°C |
| Power | AC: Input 90~260V, 50~60Hz |
| Power Consumption | ≤160W (Full) |
| MTBF | >250,000 hours |
DCN Chassis Switches from Expertise Wave
For DCN products and solutions in Saudi Arabia, contact Expertise Wave, the authorized distributor.
Reach out for product inquiries, technical support, and partnership opportunities. Our team is ready to assist you with tailored solutions and expert guidance.
Typical Application

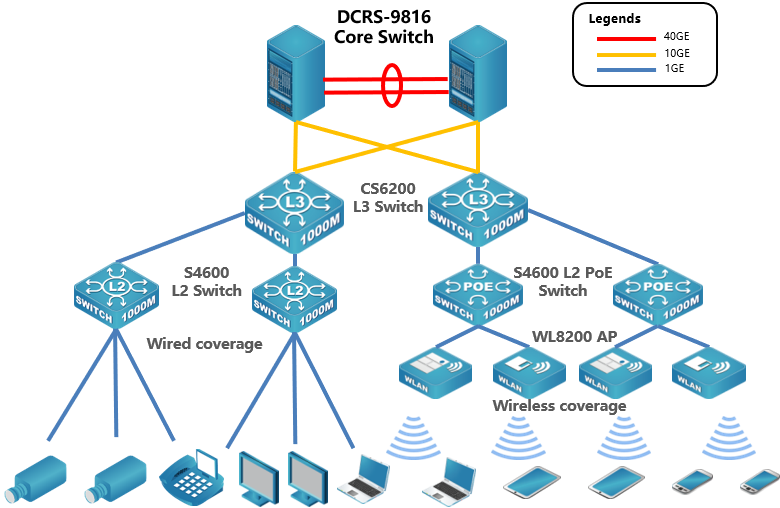

DCRS-9816 switch could be deployed on the core layer of campus network, education network, and enterprise data center network. The typical application scenario is shown below
