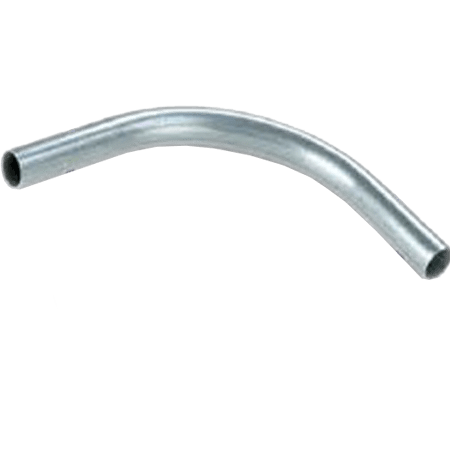

Tabalsa - EMT Bend TA
Tabalsa EMT Bend TA offers a dependable solution for electrical conduit systems, combining strength and versatility for a wide range of installations. Engineered for optimal performance, it features a galvanized steel construction that resists corrosion and provides lasting protection in demanding environments. The precise bend ensures accurate alignment and simplifies routing, while the smooth interior surface supports effortless wire pulling. Suitable for industrial, commercial, and residential projects, Tabalsa EMT Bend TA delivers consistent quality and ease of installation for professional results.
TABALSA - Piping Your Ideas
TABALSA ARABIA, a company rich in tradition and experience offering you the highest service level and attractive product.
TABALSA ARABIA forms part of the prestigious TABALSA Group located in Barcelona, Spain. TABALSAT, ALLERES BALCELLS, S.A. was established in 1952 in Barcelona, originally as the business “RAMON BALCELLS, S.A.’, created in 1921 by the homonymous entrepreneur. Being TALLERES BALCELLSS, S.A., the first company in Spain to manufacture steel pipes for electrical installations, nowadays TABALSA is Spain’s unquestionable leader in rigid conduit cable management systems for electrical and telecom applications. Our presence in practically all European countries as well as in Northern Africa and our experience of more than 85 years has turned us into a reference in the sector.
Expertise Wave - Tabalsa EMT Bend TA Products
| Product: Bend 90° | Additional protection: Antioxidant paint |
| Material: Steel | Thread: Unthreaded |
| Exterior surface: Galvanized | Conformance: ANSI C80.3 |
| Interior surface: Galvanized | Length: Change of direction |
| Weld protection: Metalized Zinc |
Conduit Solutions from Expertise wave in Saudi Arabia
For inquiries, partnership opportunities, or to request a quote for Tabalsa EMT Pipe TA products, please reach out to our authorized Tabalsa distributors in Saudi Arabia.
Our team is ready to assist you with expert guidance and tailored conduit solutions for your projects.
Tabalsa EMT Bend TA - Size & Specification Table
Below are the detailed specifications for Tabalsa EMT Bend TA, including size, outside diameter, wall thickness, inside diameter, length, and weight for various sizes.
| SIZE (INCHES) | Ø OUTSIDE | MIN. WALL THICKNESS (MM) | Ø INSIDE | LENGTH (MM) | WEIGHT (KG/PC) |
|---|---|---|---|---|---|
| 1/2 | 17.9 | 1.05 | 15.8 | 295 | 0.129 |
| 3/4 | 23.4 | 1.25 | 20.9 | 295 | 0.201 |
| 1 | 29.5 | 1.55 | 26.4 | 390 | 0.353 |
| 1 1/4 | 38.4 | 1.55 | 35.3 | 455 | 0.549 |
| 1 1/2 | 44.2 | 1.55 | 41.1 | 550 | 0.745 |
| 2 | 55.8 | 1.55 | 52.7 | 700 | 1.141 |
