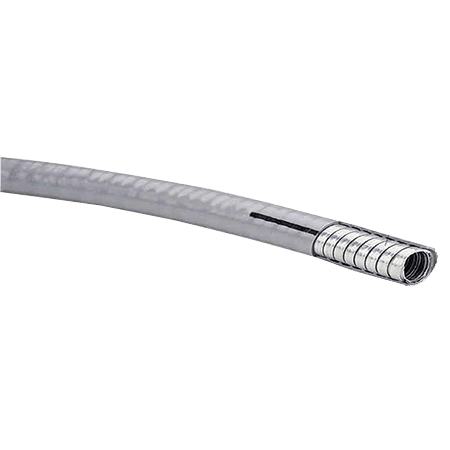

Tabalsa - Liquid Tight Steel Flexible Conduit
Tabalsa’s Liquid Tight Steel Flexible Conduit is engineered for demanding environments where both flexibility and robust protection are essential. Designed to safeguard electrical wiring against moisture, oil, and mechanical stress, it is ideal for industrial, commercial, and outdoor installations. With superior corrosion resistance and easy installation, Tabalsa conduits ensure reliable performance and long-lasting durability for your critical projects.
TABALSA - Piping Your Ideas
TABALSA ARABIA, a company rich in tradition and experience offering you the highest service level and attractive product.
TABALSA ARABIA forms part of the prestigious TABALSA Group located in Barcelona, Spain. TABALSAT, ALLERES BALCELLS, S.A. was established in 1952 in Barcelona, originally as the business “RAMON BALCELLS, S.A.’, created in 1921 by the homonymous entrepreneur. Being TALLERES BALCELLSS, S.A., the first company in Spain to manufacture steel pipes for electrical installations, nowadays TABALSA is Spain’s unquestionable leader in rigid conduit cable management systems for electrical and telecom applications. Our presence in practically all European countries as well as in Northern Africa and our experience of more than 85 years has turned us into a reference in the sector.
Expertise Wave - Tabalsa Liquid Tight Steel Flexible Conduit Products
| Product: Liquid Tight Steel Flexible Conduit | Application: UV-resistant and can be used for external use. |
| Material: Galvanized steel & PVC coated grey color | Features: Flexible construction, corrosion resistance, a smooth interior for easy wire pull-through, high mechanical strength, and flexibility in economic design. |
| IP Rating: IP66 + IP67+ IP68 (5 bar) |
Conduit Solutions from Expertise wave in Saudi Arabia
For inquiries, partnership opportunities, or to request a quote for Tabalsa EMT Pipe TA products, please reach out to our authorized Tabalsa distributors in Saudi Arabia.
Our team is ready to assist you with expert guidance and tailored conduit solutions for your projects.
Size, Diameter, Bend Radius, Length & Part Number Table
Below are the available conduit sizes, diameters, bend radius, lengths, and corresponding part numbers for Tabalsa Liquid Tight Steel Flexible Conduit.
| SIZE (INCHES) | INTERNAL DIAMETER (MM) | EXTERNAL DIAMETER (MM) | MIN BEND RADIUS (MM) | LENGTH (M) | PART NUMBER |
|---|---|---|---|---|---|
| 1/2 |
Min: 15.8 Max: 16.3 |
Min: 20.8 Max: 21.3 |
65 | 30 | LFC-16 |
| 3/4 |
Min: 20.7 Max: 21.2 |
Min: 26.2 Max: 26.7 |
77 | 30 | LFC-20 |
| 1 |
Min: 26.4 Max: 26.8 |
Min: 32.7 Max: 33.4 |
100 | 30 | LFC-25 |
| 1 1/4 |
Min: 35.4 Max: 35.5 |
Min: 41.4 Max: 42.2 |
120 | 15 | LFC-32 |
| 1 1/2 |
Min: 40.1 Max: 40.6 |
Min: 47.4 Max: 48.3 |
140 | 15 | LFC-38 |
| 2 |
Min: 51.3 Max: 51.9 |
Min: 59.4 Max: 60.3 |
180 | 10 | LFC-51 |
