DCN - Access Controller
DCN Intelligent Access Controller (default with 16 units AP license, support controlling max.256 units AP, support N+1, N+N redundancy), 24*10/100/1000MBase-T ports, 2*GbE Combo(SFP/RJ45), 2*10G SFP+ ports
DCN- Yunke China Information Technology Limited
Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.
DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.
DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.
Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.
DCN Access Controller - Key Features and Highlights

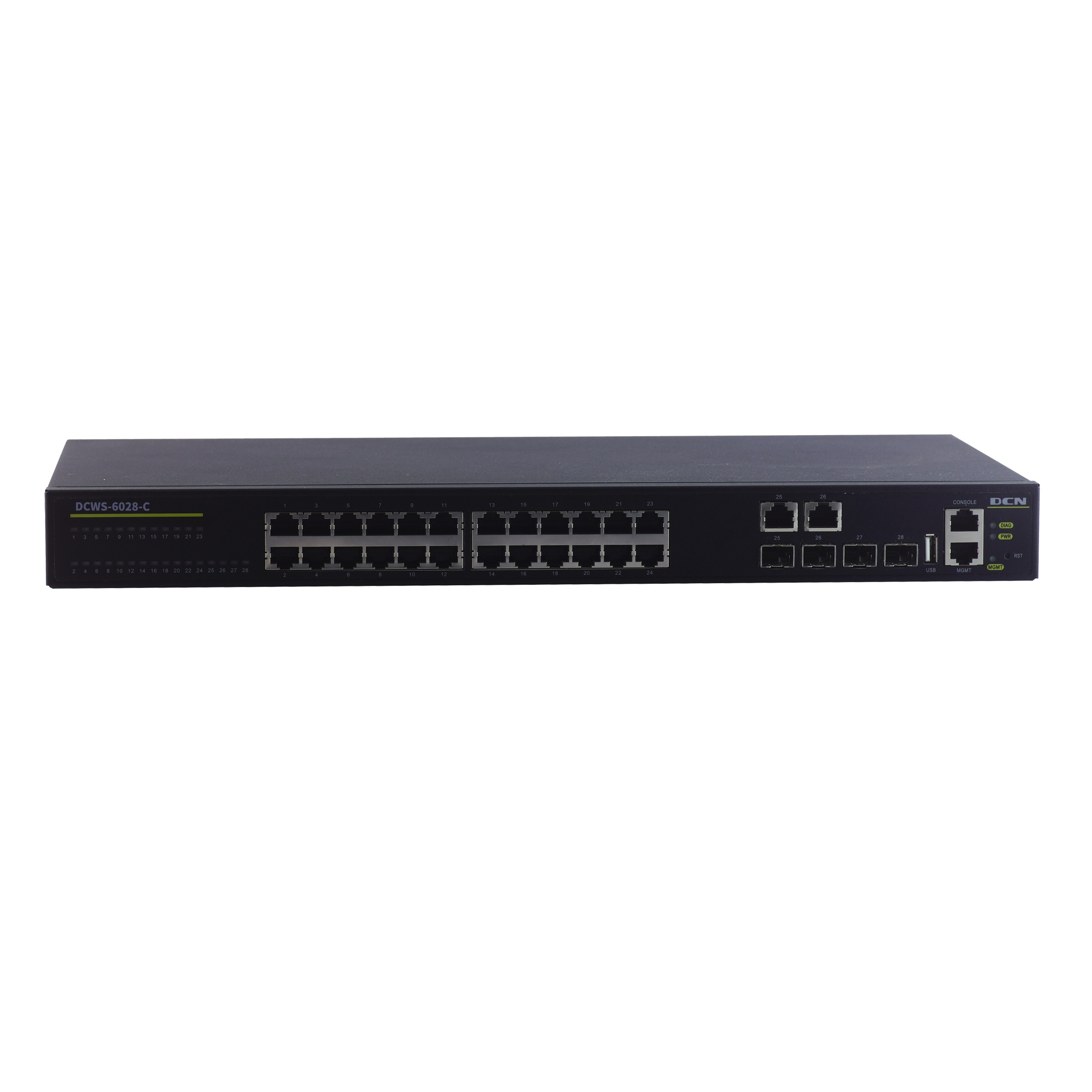

DCN DCWS-6028-C is a new generation of high-performance 10G intelligent wireless controller. Designed for a new generation of high-speed wireless networks, it can manage up to 256 wireless access points (APs) and is suitable for small and medium-sized wireless network.
DCWS-6028-C integrates exact user control management, perfect RF management and security mechanisms, super QoS and seamless roaming, providing powerful WLAN access control functions.
DCWS-6028-C has full layer 3 core switch function and powerful forwarding performance. It can be used as a wireless controller and layer 3 core switch at the same time. It offers 24 GE ports, 2 combo (GbE/SFP) ports and 2 10G SFP+ ports.
Key Features and Highlights
- Combination of routing switch and wireless AC: The DCWS-6028-C can be used as a routing switch and a wireless access controller simultaneously in a trunk deployment mode, with an ASIC-based forwarding architecture and high-density access-ports; it can provide line-speed forwarding for both wired and wireless traffic.
- High-reliability backup mechanism: Supports N+1 backup and N+N backup to ensure that a wireless network runs reliably.
- This mechanism enables an AP to intelligently detect a link between AC and AP. When detecting the breakdown of the link the AP quickly switches to its operating mode so that it can continue to forward data and allow new users to access the network. This mechanism makes sure that the access is available for all users when the AC is down.
- Intelligent RF management: Provides automatic power and channel adjustment, employs RF detection and management algorithms for better RF coverage, and supports blackhole compensation to avoid AP blind areas.
- Intelligent control of terminals based on airtime fairness: Ensures both low-rate and high-rate clients get relatively the same accessing time, avoiding low-rate clients affecting AP performance.
- Intelligent load balancing mechanism: Supports load balancing between APs based on traffic, number of users, and between radios within the AP.
- Intelligent identification of terminals: Identifies terminals by combining with DCN smart APs and a unified authentication platform. It can identify the OS of a terminal, such as Apple iOS, Android, and Windows, the size of a terminal, and the type of a terminal, such as mobile phone, laptop, and PC. Based on these identifications, DCWS-6028-C can implement dynamic policies for different types of terminal and present a corresponding-sized authentication page.
- PEAP user authentication: Protected Extensible Authentication Protocol (PEAP) authentication can provide a better user experience. The user needs to manually enter the username and password only during the first-time certification, the second time, and the subsequent certifications are performed automatically.
- User isolation policy: Supports the isolation of wireless users. If this user isolation function is enabled, only the communication between the clients and gateway is allowed, the direct communication between clients is forbidden, which can increase the security of the wireless network.
- Wireless intrusion detection and intrusion defense: Supports wireless intrusion detection and intrusion defense features, such as detection of unauthorized wireless devices, intrusion detection, blacklist, and white list, as well as anti-DoS for various wireless management packets, thereby greatly improving security management of an entire wireless network.
- Secure user admission: Provides multiple secure access, authentication, and accounting mechanisms for various application environments. These mechanisms include: 802.1x authentication, captive portal authentication, MAC address authentication, LDAP authentication, WAPI encryption and authentication, and wired/wireless integrated authentication and accounting.
- AP plug-and-play: When used with the DCWS-6028-C, DCN smart APs support plug-and-play and zero configuration. DCWS-6028-C undertakes all the management, control, and configuration of the APs. Network administrators do not need to separately manage or maintain a huge number of wireless APs.
- Remote probe analysis: Supports remote probe analysis of APs. It enables the APs to captures Wi-Fi packets and mirrors them to a local analysis device in real-time to help network administrators troubleshoot or optimize the network. The remote probe analysis function can perform analysis of a single working channel continuously or all channels in a polling mode to flexibly match various wireless network monitoring requirements.
DCWS-6028(R2) Software Specifications
| Item | DCWS-6028-C |
|---|---|
| L2 protocols and standards | IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z (1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase-T) IEEE802.3ak(10GBASE-CX4), IEEE802.1Q(VLAN) IEEE802.1d(STP), IEEE802.1W(RSTP), IEEE802.1S(MSTP) IEEE802.1p(COS) IEEE802.1x(Port Control), IEEE802.3x(flow control) IEEE802.3ad(LACP), Port Mirror IGMP Snooping, MLD Snooping QinQ, GVRP, PVLAN Broadcast control |
| L3 protocols and standards | Static Routing, RIP/v1/v2, OSPF, BGP, VRRP, IGMP v1/v2/v3, ARP, ARP Proxy, Static Multicast Route |
| Wireless protocols and standards | 802.11, 802.11a, 802.11b, 802.11g, 802.11n, 802.11d, 802.11h, 802.11i, 802.11e, 802.11k |
| CAPWAP protocol | Supports L2/L3 network topology between an AP and an AC. Enables an AP to automatically discover an accessible AC. Enables an AP to automatically upgrade its software version from an AC. Enables an AP to automatically download configurations from an AC. |
| IPv6 protocols and standards | 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel, ICMPv6, ND, DNSv6, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR), IPv6 VRRPv3, IPv6 URPF, IPv6 RA/Ring, OSPFv3, BGP+MLD Snooping, IPv6 Multicast VLAN, MLDv1/v2, IPv6 ACL, IPv6 QoS |
| High reliability | N+1 backup N+N backup |
| RF management | Setting country codes |
| Manually/automatically setting the transmit power | |
| Manually/automatically setting the working channel | |
| Automatically adjusting the transmission rate | |
| Blind area detection and repair | |
| RF environment scanning, which enables a working AP to scan the surrounding RF environment | |
| RF interference detection and avoidance | |
| 11n-preferred RF policy | |
| SSID hiding | |
| 20 MHz and 40 MHz channel bandwidth configuration | |
| Airtime protection in hybrid access of 11bg and 11n terminals | |
| Terminal-based airtime fairness scheduling | |
| Terminal locating (A terminal locating algorithm can be embedded in the AC) | |
| Spectral navigation (5 GHz preferred) | |
| 11n only | |
| SSID-based or Radio-based limit on the number of users | |
| User online detection | |
| Automatic aging of traffic-free users | |
| Prohibiting the access of clients with weak signals | |
| Remote probe analysis | |
| Security | 64/128 WEP, dynamic WEP, TKIP, CCMP, and SMS encryption |
| 802.11i security authentication and two modes (Enterprise and Personal) of 802.1x and PSK | |
| WAPI encryption and authentication | |
| LDAP authentication | |
| MAC address authentication | |
| Portal authentication, including built-in portal, external portal, and custom portal authentication modes | |
| PEAP user authentication | |
| Forwarding security control, such as frame filtering, white list, static blacklist, and dynamic blacklist | |
| User isolation | |
| Periodic Radio/SSID enabling and disabling | |
| Access control of free resources | |
| Secure admission control of wireless terminals | |
| Access control of various data packets such as MAC, IPv4, and IPv6 packets | |
| Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC | |
| Radius Client | |
| Backup authentication server | |
| Wireless SAVI | |
| User access control based on AP locations | |
| Wireless intrusion detection system (WIDS) and wireless intrusion prevention system (WIPS) | |
| Protection against flooding attacks | |
| Protection against spoofing attacks | |
| Forwarding | IPv6 access and forwarding, constructing IPv6 WLAN access service on an IPv4 network; providing IPv4 WLAN access service on an IPv6 network; and constructing private IPv6 WLAN network service on an IPv6 network |
| Fast L2/L3 roaming between APs served by the same AC | |
| IPv4 and IPv6 multicast forwarding | |
| WDS AP | |
| QoS | 802.11e (WMM); and 4-level priority queues, ensuring that applications sensitive to the real-time effect, such as voice and video services, are transmitted first |
| Ethernet port 802.1P identification and marking, Mapping from wireless priorities to wired priorities Mapping of different SSIDs/VLANs to different QoS policies, Mapping of data streams that match with different packet fields to different QoS policies Access control of MAC, IPv4, and IPv6 data packets Load balancing based on the number of users, Load balancing based on user traffic, Load balancing based on frequency bands Bandwidth limit based on APs, Bandwidth limit based on SSIDs, Bandwidth limit based on terminals, Bandwidth limit based on specific data streams Power saving mode Multicast-to-unicast mechanism Automatic emergency mechanism of APs Intelligent identification of terminals | |
| Management | Web management |
| Configuration through a console port | |
| SNMP v1/v2c/v3 | |
| Both local and remote maintenance | |
| Local logs, Syslog, and log file export | |
| Alarm | |
| Fault detection | |
| Statistics | |
| Login through Telnet | |
| Login through SSH | |
| Dual-image (dual-OS) backup | |
| Hardware watchdog | |
| AC cluster management; automatic information synchronization between ACs in a cluster, and automatic or manual push of configuration information | |
| SSID-based user permission management mechanism |
DCWS-6028(R2) Hardware Specifications
| Item | DCWS-6028-C | |
|---|---|---|
| Basic Parameter | Max QTY of managed AP | 256 |
| Default QTY of managed AP | 16 | |
| AP License upgrade step | 16,32,128 | |
| Max con-current users | 5K(no user authentication), 1K(with user authentication) | |
| Switch capacity | 128Gbps | |
| Forwarding rate | 95Mpps | |
| VLAN | 4K | |
| ACL | 3K | |
| MAC | 16K | |
| ARP | 4K | |
| Physical Parameter | Interface |
24 × 10/100/1000Base-T Ethernet ports 2 × combo (GbE/SFP) Ethernet ports 2 × 10G SFP+ Ethernet ports |
| Management interface |
1 × Console (RJ-45) 1 × 10/100/1000BASE-T MGMT 1 × USB 2.0 |
|
| Dimension(L*W*H) | 440mm*240mm*44mm, 1U | |
| Power Parameter | Consumption | <25W |
| Power input | AC 110V ~ 240V, 50-60Hz (+/- 3Hz) | |
| Environmental Parameter | Working temperature | 0℃~55℃ |
| Storage temperature | -40℃~70℃ | |
| Working humidity | 5%~90% non-condensing |
Typical Application

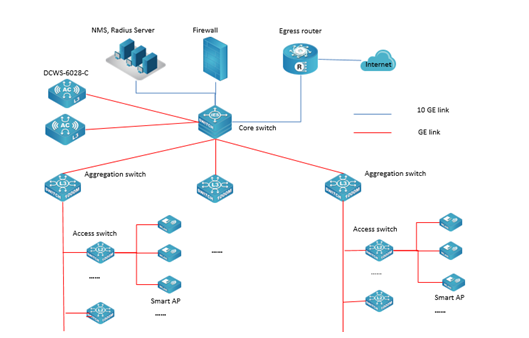

Bypass Deployment Scenario
Typical Application

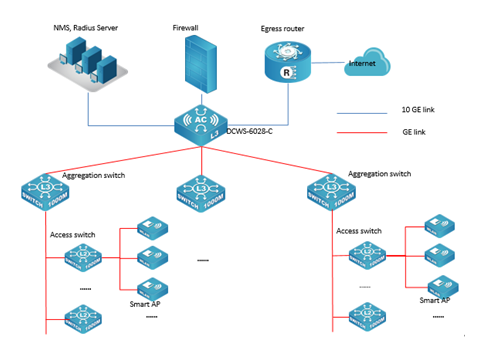

Trunk Deployment Scenario
Here the DCWS-6028-C is deployed both as an L3 switch and access controller.
Order Information
| Product Model | Description | Remarks |
|---|---|---|
| DCWS-6028-C | DCWS-6028-C wireless and wired integration access controller (24x 10/100/1000Base-T, 2 x combo (GbE/SFP), 2 x 10G SFP+），default with 16 units AP license, support controlling max. 256 AP | Mandatory |
| DCWS-L16 | Upgrade license of the DCN wired/wireless integrated smart AC (for upgrading 16 APs, a minimum number of upgrade step is 16 APs) | Optional |
| DCWS-L32 | Upgrade license of the DCN wired/wireless integrated smart AC (for upgrading 32 APs, a minimum number of upgrade step is 32 APs) | Optional |
| DCWS-L128 | Upgrade license of the DCN wired/wireless integrated smart AC (for upgrading 128 APs, a minimum number of upgrade step is 128 APs) | Optional |
