DCN ImCloud - (DCN Intelligent Management Cloud) 8260 (R2)
DCN ImCloud(DCN Intelligent Management Cloud) 8260 is based on cloud technology and provides a new model of wireless network access control and management. With the Cloud Management, it makes the complex network management into a simple, intelligent and visual practice, and improves the users’wireless access and management experience.
ImCloud 8260 is suitable for chain hotels, education organizations, shopping mall and enterprises with multiple branch offices, it can manage up to 5K wireless access points (APs).
DCN ImCloud 8260 (R2)- Key Features and Highlights
Multi-service, High Performance and On-demand Scalability
Integrating AC, authentication, and network management

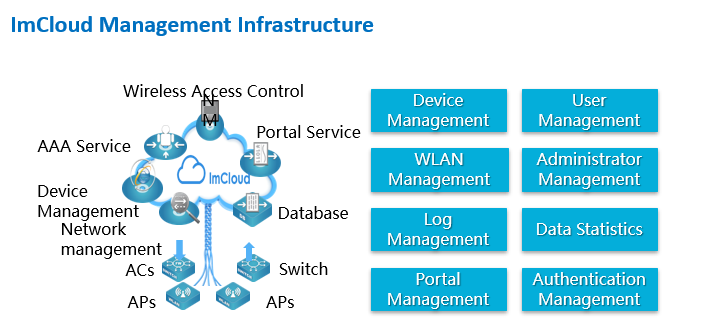

ImCloud 8260 (R2) is an all-in-one cloud management platform that integrates authentication, wireless control, and many kinds of management like network management, equipment management, organization management, user account management.
The high data processing capability
Based on the high-efficient dual-core operating system ImCloud 8260 is capable of managing up to 5,000 APs, 10000 concurrent users, and over 500000 registered users, able to satisfy the needs of single-user multi-concurrent terminals under the application environment of large user volume and high concurrency in Metropolitan Area Network.
Linear scalability of function
The function module can be scaled linearly per manager’s demands and may vary with the management plan of managers at different levels.
Friendly Man-machine Interact
Intuitive interface operation
With an intuitive web interface design, ImCloud 8260 (R2) can assist an administrator in user management, organization structure management, equipment management, administrator management, authentication setting, and network configuration.
Windows-style design
The operation interface is a Windows-style one which is easy for operating. With densely packed functions, it is easy to understand and operate, facilitating users with fast installation and convenient use.
User-friendly Management
AP plus and play
Managed by ImCloud 8260 (R2), DCN smart APs support plug-and-play and zero configuration. ImCloud 8260 (R2) undertakes all the management, control, and configuration of the APs. Network administrators do not need to separately manage or maintain a huge number of wireless APs.
Distributed management
ImCloud 8260 (R2) is capable of providing hierarchical distributed management based on organization structure.
The headquarters administrator can implement centralized monitoring for network equipment, wireless users, and network state of every branch, the configuration of overall wireless network, upgrading of overall equipment, unified authentication of user identity. The branch administrator can manage the equipment of the corresponding branch under the authorization of the headquarters administrator.
Flexible Built-in User Authentication
Multiple Flexible and Safe Authentication Modes
It supports Portal, SMS, We Chat, QR Code, Pre-shared Key, MAC, and other authentication modes.
Terminal Intelligent Identification
ImCloud 8260 (R2) can identify the OS of a terminal, such as Apple iOS, Android, and windows, the size of a terminal, and the type of a terminal, such as mobile phone, laptop, and PC. Basing on these identifications, it can implement dynamic policies for different types of terminal and present a corresponding-sized authentication page.
Built-in Authentication Server, easily realizing WEB Authentication
ImCloud 8260 (R2) has the built-in portal server and user accounts, so it doesn’t need an external portal server and radius server to do the WEB authentication, resulting in both simplified network deployment and reduced network construction cost.
PEAP user authentication
Protected Extensible Authentication Protocol (PEAP) authentication can provide a better user experience. The user needs to manually enter the username and passwords only during the first-time certification, the second time, and the subsequent certifications are performed automatically.
Flexible Visitor Authentication Management
The perfect built-in visitor management system has fully taken the industry demand of users into account and customized rich, convenient, and safe visitor management mechanisms accordingly:
- Authentication of Authorized QR Code for visitors.
- Authentication of Meeting QR Code for the meeting participants
- SMS Authentication for the mobile population to open a temporary account
Intelligent Control of Wireless Network
Intelligent RF Management
ImCloud 8260 (R2) provides an automatic power and channel adjustment function. It employs particular RF detection and management algorithms to attain a better RF coverage effect. When the signals of an AP are interfered with by strong external signals, the AP may automatically switch to an appropriate operating channel under the control of the AC to avoid such interference. It also supports the black hole compensation mechanism. which adjust the AP power to cover the blind area resulted by the crashing of some APs
Intelligent control of terminals based on airtime fairness
This function makes sure that both the low-rate and the high-rate clients get relatively the same accessing time, which can avoid the low-rate clients to affect the AP overall performance by taking up too much accessing time.

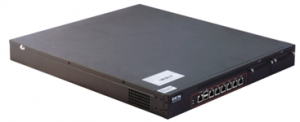

Product Specifications - Hardware Specification
DCN ImCloud 8260 (R2) is designed to deliver high-performance wireless networking solutions with advanced features for seamless connectivity and management.
| Item | Parameter | ImCloud 8260 (R2) |
|---|---|---|
| Service Port | Gigabit Ethernet ports | 6 x 10/100/1000Base-T |
| PCIe Expansion Slots | 2 slots (support up to 4 x 10G SFP+ ports) | |
| Console Port | 1 x RJ-45 | |
| Management Port | Network Management Port | 1 x RJ-45 |
| USB Ports | 2 x USB 2.0 | |
| Dimension (L×W×H) | Physical Size | 440 × 400 × 44 mm |
| Storage | SSD | 256G SSD |
| Memory | RAM | 16G DDR4 |
| CPU | Processor | E3-1225 v5 3.30 GHz, 4-core 4-thread |
| Power Input | Power Supply | 1+1 modular AC power |
| Operating Temperature | Temperature Range | 0°C ~ 55°C |
| Storage Temperature | Temperature Range | -40°C ~ 70°C |
| Operating Humidity | Humidity Range | 5% ~ 90% (non-condensing) |
Product Specifications - Software Specification
DCN ImCloud 8260 (R2) software delivers robust, scalable, and secure wireless network management. It supports advanced authentication, seamless roaming, high reliability, and comprehensive RF management. The platform enables centralized control, flexible licensing, and intuitive configuration for large-scale enterprise deployments.
| Item | ImCloud 8260 | ImCloud 8260 |
|---|---|---|
| Basic Performance | Maximum Manageable AP Number (set) | 5K |
| Basic Manageable AP Number (set) | 32 | |
| AP License step size | 16, 32, 128 | |
| Maximum On-line Concurrent User Number | 100K | |
| Built-in Local Authentication Account | 500K | |
| VLAN number | 4096 | |
| SSID number | 500 | |
| Wireless Protocol Specification | 802.11, 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11h, 802.11ax | |
| Wireless Management Protocol | Support MAN, LAN, and Internet group network with AP | |
| CAPWAP Protocol |
AP can discover and access automatically AP can update software version automatically AP can download configuration automatically |
|
| User Roaming Switch Time | Less than 30ms | |
| High Reliability | Support 1+1 quick backup | |
| Wireless Basic RF Management |
Support country code setting | Yes |
| Support manual/auto setting of transmitted power | Yes | |
| Support manual/auto setting of a working channel | Yes | |
| Support auto adjustment of transmission rate | Yes | |
| Support RF environment scanning, AP scanning surrounding RF environment information upon working | Yes | |
| Support wireless RF interference monitoring and evading | Yes | |
| Support 11n preferred RF strategy | Yes | |
| Support 20MHz and 40MHz channel bandwidth configuration | Yes | |
| Support air interface time protection under the circumstance of 11abg, 11n, and 11ac terminal hybrid access | Yes | |
| Fair scheduling of terminal-based air interface time | Yes | |
| Frequency spectrum navigation (5G preferred) | Yes | |
| User online detection | Yes | |
| Auto-aging with no user traffic | Yes | |
| Inhibit client access to weak signal | Yes | |
| Mandatory roaming of weak signal in a client terminal | Yes | |
| Access Authentication | Account Authentication | Support user-and password-based portal authentication |
| We chat Authentication | Support WeChat connect Wi-Fi authentication mode | |
| Authorization QR Code Authentication | After connecting to the wireless network, a QR code page will automatically appear on the terminal. The visitor can have access to the internet by scanning the QR code with his mobile phone; | |
| Conference QR Code Authentication | Before a conference is held, a QR code will be generated according to the type and number of visitors and the time of the visit. Visitors can use internet service by scanning the QR code | |
| One-click Authentication | Users can have access to the internet by clicking the authentication page without entering accounts | |
| MAC Authentication | mac address authentication based on different wireless networks | |
| SMS Authentication | After entering his mobile phone number, the visitor receives an SMS with a password. Then, he needs to enter the password to implement authentication | |
| PEAP Authentication | When implementing authentication for the first time, the visitor needs to enter his username and password. When reconnecting the internet within the preset time limit, the visitor does not need to enter his username and password for authentication. |
DCN ImCloud Platform from Expertise Wave
For DCN products and solutions in Saudi Arabia, contact Expertise Wave, the authorized distributor.
Reach out for product inquiries, technical support, and partnership opportunities. Our team is ready to assist you with tailored solutions and expert guidance.
DCN ImCloud - Typical Application
DCN ImCloud 8260 (R2) is a cloud-based management platform designed to provide centralized control and management of wireless networks. It supports a wide range of features, including user authentication, network monitoring, and configuration management, making it suitable for large-scale deployments in various environments.

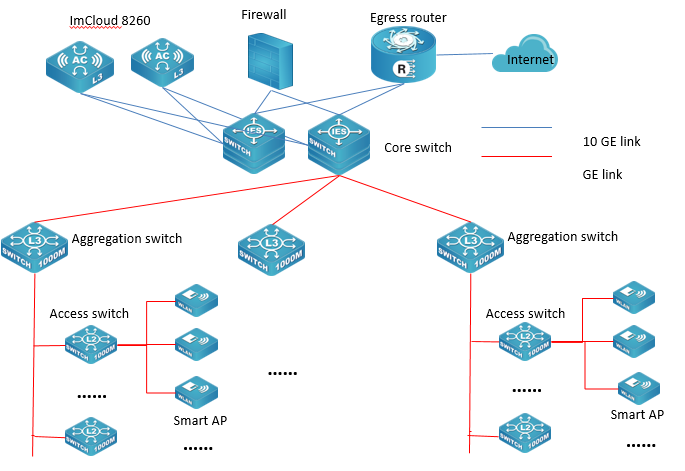

Bypass Deployment Scenario
Here ImCloud 8260 (R2) is deployed in bypass mode. It works as an authentication server, network management system, and access controller. The two ImCloud 8260 (R2) can provide 1+1 redundancy.

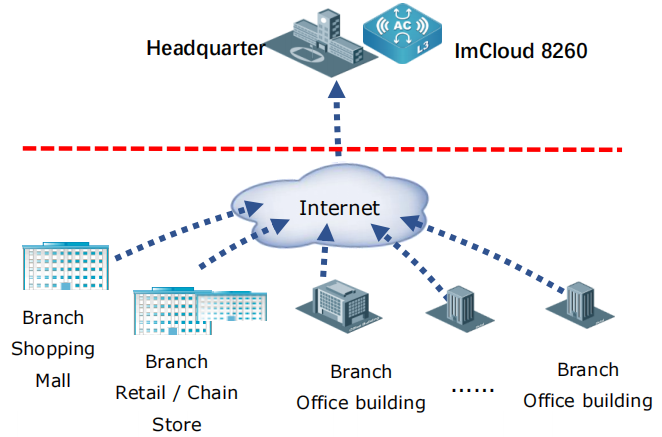

Multi-branch Organization Scenario
Here is for Multi-branch organization deployment. ImCloud is installed in headquarter and manages all the branch networks through the internet.
Order Information
| Product Model | Description | Remarks |
|---|---|---|
| ImCloud 8260 (R2) | ImCloud Intelligent Cloud Management Platform is designed for multi-branch organizations, general education metropolitan area networks and companies in lack of IT management, co-operate with DCN intelligent wireless APs, switches, gateways and other network equipment, to provide users with deployable, maintainable and expandable network. 1U device, provide 6* 10/100/1000Base-T ports and 2* PCIE expansion slots (could extend max 4* 10G SFP+ ports), 2 USB ports, one console port; Integrated 256G SSD disk, 16G DDR4 memory, redundant power. | Mandatory |
| ImCloud-2XS | 10-gigabit expansion card | Optional |
| DCWS-L16 | Upgrade license of the DCN wired/wireless integrated smart AC (for upgrading 16 APs, a minimum number of upgrade step is 16 APs) | Optional |
| DCWS-L32 | Specialized upgrading license of DCN wired-wireless integrated intelligent controller (including 32-set AP upgrading license) | Optional |
| DCWS-L128 | Specialized upgrading license of DCN wired-wireless integrated intelligent controller (including 128-set AP upgrading license) | Optional |
