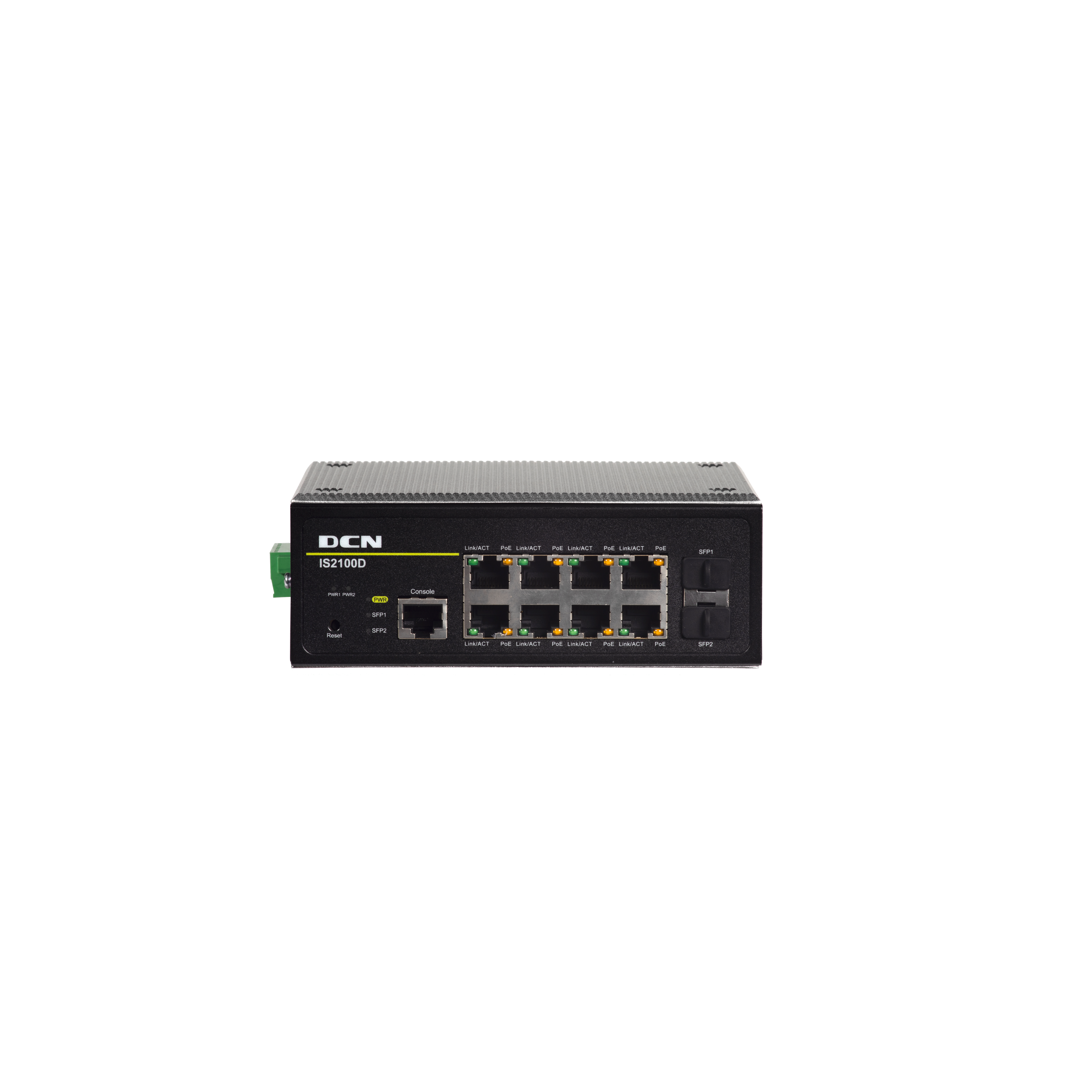

DIN Rail Industrial L2 Managed POE+ Switch, 8* 10/100Base-T(POE+30W) + 2* 100/1000M SFP
DCN- Yunke China Information Technology Limited
Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.
DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.
DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.
Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.
Industrial Switches Key Features and Highlights
Key Features and Highlights
- IS2100D(R2) series adopts industrial-grade hardware components and a cooling shell of aluminum alloy to ensure the industrial-grade quality of the product.
- The series adopts a fan-free thermal design with a multi-cooling structure plus a built-in cooling fan, thermal grease, etc., to ensure an operating temperature range of -40~85°C.
- The series is provided with a twin-circuit direct current power redundancy design and system power failure alarm. It supports resistance to vibration and dust and follows IP grade protection standards as IP40.
- The series supports ordinary QinQ, Selective QinQ, and flexible QinQ technology, which ensures users have the maximum freedom to configure QinQ strategies.
- The series supports the exchange function of N:1 VLAN ID, that is, N:1 VLAN Translation. N:1 VLAN Tags of access port message can be converted to one designated VLAN Tag, thus providing a strong technology guarantee for the convergence of QoS strategies.
- The series supports multiple types of VLAN, such as protocol VLAN, MAC VLAN, and Voice VLAN, and plays a role in the multi-service integrated network.
- IS2100D series is provided with various safety protection mechanisms, offering various anti-DOS attack technologies like SYN Flood, Land, and ICMP Flood, and supporting BPDU Guard and Root Guard, prevents accidental topology rings and illegal edge devices from becoming root nodes, thus avoiding unnecessary topological shock.
- Supports DHCP snooping and IP Source Guard based on port and VLAN, and effectively prevents source MAC spoofing from impacting the device MAC table entry, which results in, among others, flooding due to normal users’ failure to learn MAC table.
- Supports 802.1X authentication access, expanded 802.1X authentication access, effectively avoids IP conflict and PC cloning, and realizes extended enhancement functions like static IP address binding.
- The series has two gigabit uplink ports, which realizes dual uplink network and enhances the robustness and high reliability of user network structure.
- Supports the industrial standard ERPS ring network solution, supports various networking modes like a single ring, tangent ring, intersecting ring, and dual-homing ring, ensures the convergence speed to be less than 50ms, and realizes carrier-grade reliability.
- Supports multi-process MSTP. The processes can run different spanning tree protocols. In the meantime, the number of access sub-rings is increased. Additional access rings can be realized by creating a new MSTP, without affecting original service traffic to another network ring.
- PoE model supports enhanced Ethernet power supply function (PoE+), with maximum 30W output power per port, and can directly power auxiliary PD devices (including 802.11n wireless access point, visual IP phone, HD web camera, etc.).
- Provides a perfect PoE solution, which allows users to selectively set a PoE power supply port and configure the maximum output power for each port, to save energy. The series supports setting for various power supply priorities as well as real-time priority for ports. Thus, when there are a large number of devices to be powered, it can maximally ensure that devices with high priority are powered first. Thus, flexible PoE power supply management is realized.
IS2100D-2GF8GT-P(R2) / IS2100D-2GF8TX-P(R2) Technical Specifications
| Item | IS2100D-2GF8GT-P(R2) | IS2100D-2GF8TX-P(R2) |
|---|---|---|
| Device port | 8×10/100/1000Base-T PoE+ 2×10/100/1000Base-X (SFP) | 8×10/100Base-T PoE+ 2×10/100/1000Base-X (SFP) |
| Switching capacity | 20G | |
| Packet forwarding rate | 14.88Mpps | 4.2Mpps |
| VLAN characteristics |
Port-based VLAN IEEE802.1Q VLAN Private VLAN Protocol VLAN Voice VLAN MAC VLAN Ordinary QinQ Selective QinQ Flexible QinQ VLAN Translation N:1 VLAN Translation |
|
| DHCP |
Support IPv4/IPv6 DHCP Client and IPv4/IPv6 DHCP Relay Support Option 82 and Option 3/18 Support IPv4/IPv6 DHCP Snooping and IPv4/IPv6 DHCP Server |
|
| Reliability |
Dual DC power input, support system power failure alarm Support STP, RSTP, MSTP Support multi-process MSTP Support LACP load balance Support ERPS (ITU-T G.8032) and ARPP Support G.8032 standard ring network protocol Support Loopback detection, VCT, DDM Support LLDP (to realize the same functions as Cisco UDLD) |
|
| Safety |
Support port speed limit Support broadcast storm control based on message and number of bytes Support port MAC binding and MAC filter Support MAC number limit based on port and based on VLAN Support anti-ARP spoofing, anti-ARP scanning, and ARP binding Support DHCP Snooping and ND Snooping Support DAI Support standard IEEE 802.1x, extended IEEE 802.1x, and Web Portal Support TACACS+ |
|
| Multicast |
Support IGMP v1/v2/v3 snooping and IGMP Fast leave Support MLD v1/v2 snooping Support multicast VLAN and IPv4/IPv6 DSCPM |
|
| QoS |
Support ACL-based stream, VLAN ID, COS, TOS, and DSCP Support aggregated Policy-Map Support Policy-Map binding based on port and based on VLAN Support single speed, single barrel, and double color Support field rewriting of DSCP, COS 802.1p priority, and TOS Support 8 queues per port Support queue scheduling algorithms of SP, WRR, SWRR, and DWRR Support matching IP segment message |
|
| ACL |
Support IP ACL, matching based on fields such as source/destination IP, IP protocol type, IP priority, TCP/UDP source, and destination port number Support MAC ACL, message matching based on fields such as source/destination-based MAC, VLAN ID, and COS Support IP+MAC combination ACL Support effective ACL according to a time range Support ACL binding based on port and based on VLAN Support ACL-based redirection Support execution of traffic statistical analysis function according to ACL matching |
|
| Management, operation, and maintenance |
CLI IPv4/IPv6 HTTP IPv4/IPv6 FTP/TFTP IPv4/IPv6 SNTP/NTP Radius authentication of telnet user name and password of IPv4/IPv6 SSH of IPv4/IPv6 Security IP security network management function SNMPv1/v2/v3 Support MIB port, support Trap Support RMON 1, 2, 3 and 9 groups Support dual IMG and multiple profiles Support LLDP Support port mirroring, CPU mirroring and RSPAN Support sFlow flow monitoring Support Reset one-key reset Support OEM Support mirror sampling |
|
| Energy conservation and environmental protection |
Support 802.3az Energy Efficient Ethernet EEE Fan-free mute design to reduce noise |
|
| Dimensions | 165*140*60mm | |
| Operating Humidity | 10% ~ 95%, no condensation. | |
| Operating Temperature | -40°C ~ 85°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Rated power input | 50 ~ 57 VDC (PoE models) | 48VDC (Non-PoE models) |
| Standard and Certification | CE,FCC | |

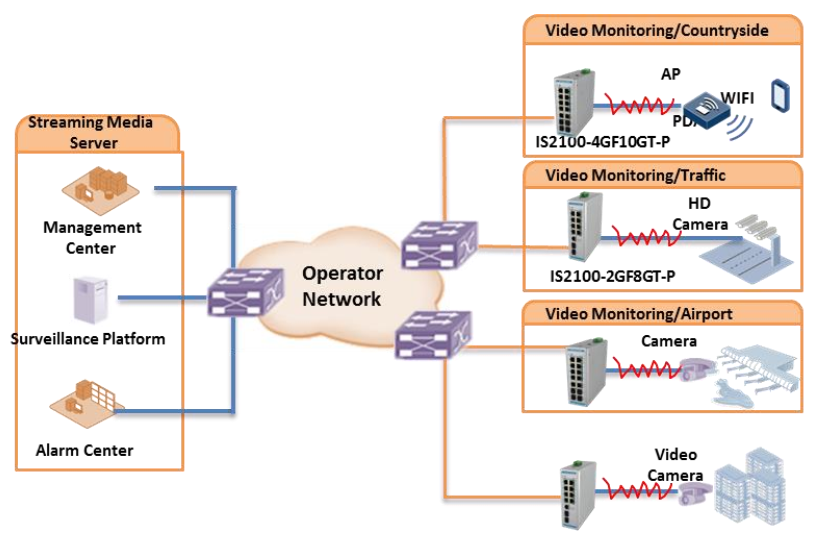

Typical Application
The IS2100(R2) Series operates at a wide temperature range and allows deployment in outdoor and harsh industrial environments. PoE models feed 15.4W/30W per port and support remotely controlled APs and video cameras.
Industrial Switches Series - Order Information
Below are the available models and descriptions for these series switches.
| Product | Description |
|---|---|
| IS2100D-2GF8GT-P(R2) | IS2100D-2GF8GT-P DIN rail POE industrial Ethernet switch, 8x10/100/1000Base-T POE + 2x100/1000Base-X (SFP). All electrical interfaces support 15.4w/30w PoE, maximum PoE power output 180W, 50~57VDC |
| IS2100D-2GF8TX-P(R2) | IS2100D-2GF8TX-P DIN rail POE industrial Ethernet switch, 8x10/100Base-T POE + 2x100/1000Base-X (SFP). All electrical interfaces support 15.4w/30w PoE, maximum PoE power output 180W, 50~57VDC |
