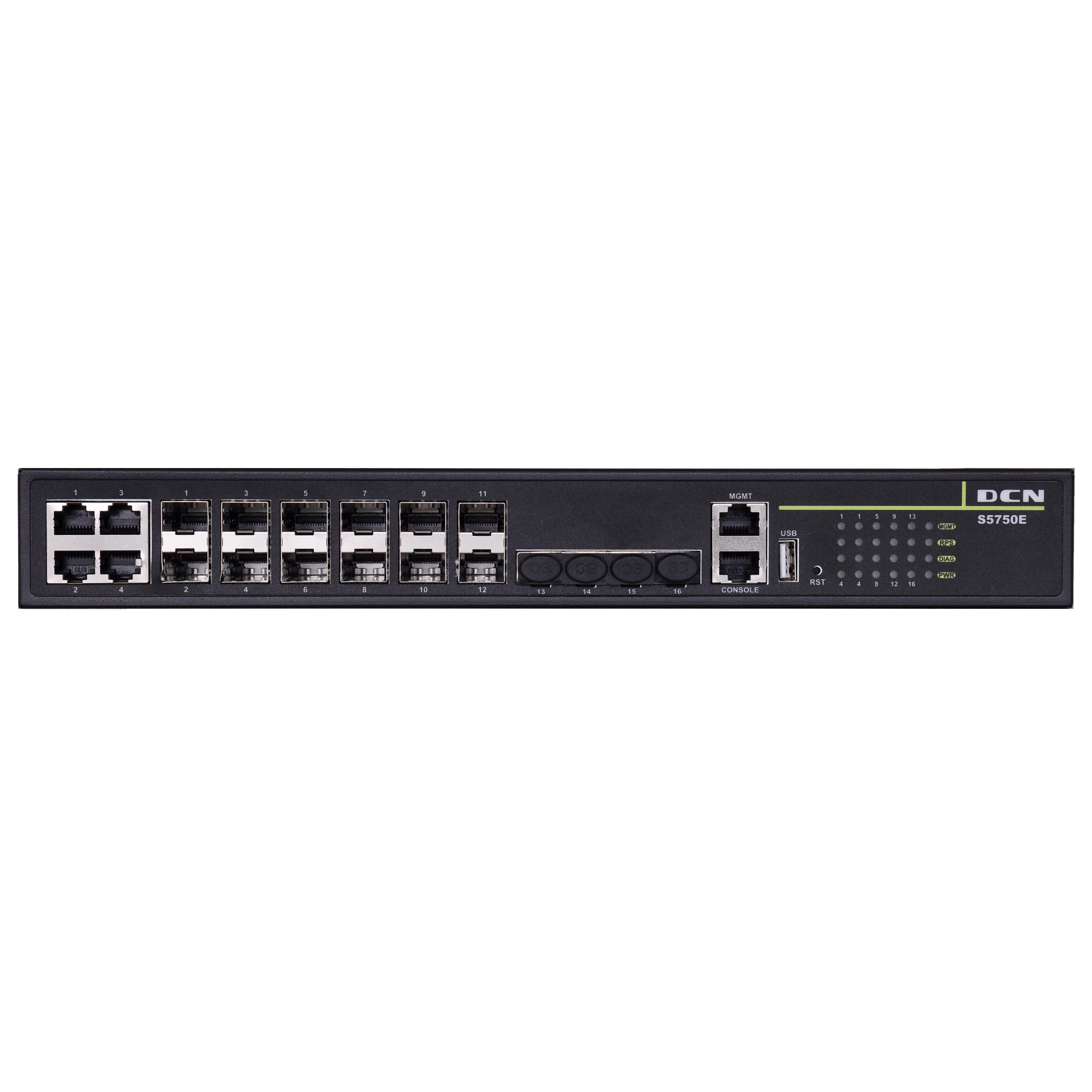

DCN - S5750E-16F-SI-D / S5750E-28F-SI-D / S5750E-52F-SI-D

DCN - L3 Switches

L3 10G Switch (48* SFP + 4* 10G (SFP+)), AC+48V DC power fixed

DCN- Yunke China Information Technology Limited

Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.

DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.

DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.

Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.

Download DCN Network Profile
Product Overview

S5750E-16F-SI-D / S5750E-28F-SI-D / S5750E-52F-SI-D Key Features and Highlights

Expertise Wave img Placholder

Key Features and Highlights

  • Performance and Scalability
    With high switching capacity and all non-blocking ports, S5750E(R2) series support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols.
    The 10 Gigabit Ethernet connectivity of S5750E(R2) is accomplished via a hot-pluggable 1 Gigabit SFP or 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen).
  • VSF (Virtual Switch Framework)
    Virtual Switch Framework can virtualize multiple DCN switches into one logical device, achieving the sharing of information and data tables between different switches with max 16 units for stacking. The performance and ports density of the virtualized device is greatly enlarged by times under VSF, 160Gbps total stack bandwidth. VSF also simplifies management work for the network administrator and provides more reliability.
  • Rich L3 Features
    S5750E(R2) series delivers high-performance, hardware-based IP routing. RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With S5750E(R2) series, customers could easily achieve Policy-based Route (PBR), which is important when they need a multi exit application.
  • Strong Multicast
    S5750E(R2) series supports abundant multicast features. In Layer 2, such as IGMPv1/v2/v3 snooping and fast leave. L3 multicast protocols such as IGMPv1/v2/v3. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; S5750E(R2) series provides a great application experience for the customer.
  • High-Reliability network
    MRPP is a Multi-layer Ring Protection Protocol, which is DCN's private fast Ethernet ring protocol. Comparing to spanning tree protocol, it has the advantages of fast convergence, simple protocol calculation, fewer system resources cost, and so on, which can improve the reliability of Ethernet network operation.
  • Comprehensive QoS
    With 8 queues per port, S5750E(R2) series enable differentiated management of up to 8 traffic types. The traffic is prioritized according to IEEE802.1p, DSCP, IP precedence, and TCP/UDP port number, giving optimal performance to real-time applications such as voice and video.
    S5750E(R2) series also supports Bi-directional rate-limiting, per port or traffic class preserves network bandwidth, and allows full control of network resources.
  • Abundant IPv6 Support
    S5750E(R2) series supports IPv6 switching and routing based on hardware for maximum performance. With increased network devices growing the need for larger addressing and higher security become critical, S5750E(R2) series will be the right product to meet this requirement.
Specifications

S5750E-16F-SI-D / S5750E-28F-SI-D / S5750E-52F-SI-D Technical Specifications

Item S5750E-16F-SI-D S5750E-28F-SI-D S5750E-52F-SI-D
Physical port 8 x 100/1000Base-X (SFP) + 4 x GE Combo (RJ45/SFP) + 4 x 10GbE (SFP+)
Auto-MIDX		 16 x 100/1000Base-X (SFP) + 8x GE Combo (GT/SFP) + 4 x 10GE(SFP+)
Auto-MIDX		 48 x 100/1000Base-X (SFP) + 4 x 10GbE (SFP+)
Auto-MIDX
Management port 1 x RJ45 Ethernet Management port
1 x Console port
1 x USB2.0 interface		 1 x RJ45 Ethernet Management port
1 x Console port
1 x USB2.0 interface		 1 x RJ45 Ethernet Management port
1 x Console port
1 x USB2.0 interface
Lighting protection level 2KV
Performance
Switching Capacity 112Gbps 128Gbps 176Gbps
Forwarding rate 83Mpps 95Mpps 131Mpps
Jumbo Frame 10K 10K 10K
MAC Address 16K 16K 16K
ARP Table 4K 4K 4K
Routing Table 1K 1K 1K
ACL Table 1K 1K 1K
Physical
Dimension (W*H*D) 330mm x 44mm x 230mm 440mm x 44mm x 240mm 440mm x 44mm x 320mm
Relative Humidity 5%~95% non-condensing
Temperature Working 0°C~50°C, storage -40°C~70°C
Power Supply AC:100~240VAC, 50~60Hz + 12VDC RPS AC:100~240VAC, 50~60Hz + 48V DC AC:100~240VAC, 50~60Hz + 12VDC RPS
Power Consumption <22W <34W <60W
Main Features
L1, L2 Features IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000Base-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4)
Port loopback detection
LLDP and LLDP-MED
UDLD
IEEE802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance
ERPS (G.8032)
N:1 Port Mirroring
RSPAN(Remote mirroring)
IEEE802.1d(STP)
IEEE802.1w(RSTP)
IEEE802.1s(MSTP)
Root Guard
BPDU Guard
BPDU Tunnel
IEEE 802.1Q, 4K VLAN, VLAN-trunking, Hybrid VLAN
MAC VLAN, Voice VLAN, PVLAN(Private VLAN), Protocol VLAN, Multicast VLAN
QinQ, Flexible QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control
IGMP v1/v2/v3 Snooping and L2 Query
ND Snooping
MLDv1/v2 Snooping
L3 Features Port Security, MAC limit
Flow Control: HOL, IEEE802.3x
Bandwidth Control
Static Routing, RIP v1/v2, OSPFv2, BGP4+
OSPF multiple processes
Policy-based routing (PBR) for IPv4 and IPv6
VRRP
URPF
ECMP
BFD
IGMP v1/v2/v3, IGMP Proxy
DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP Cheat, Anti ARP Scan
DNS Client, DNS Relay
GRE Tunnel
IPv6 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel
ICMPv6, ND
DNSv6, OSPFv3, BGP4+
MLD Snooping, IPv6 Multicast VLAN
MLDv1/v2, IPv6 ACL, IPv6 QoS
IPv6 DSCP
QoS 8 Queues
SP, WRR, SWRR, WDRR, SWDRR
Traffic Classification Based on 802.1p, CoS, ToS, DiffServ DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark
ACL IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence, VLAN, Tag/Untag, CoS
Redirect and Statistics
Rules can be configured to port, VLAN, VLAN routing interfaces
Time Ranged ACL
ACL rules can be configured to port, VLAN
Security IEEE 802.1x AAA
Port, MAC-based authentication
Accounting based on time length and traffic
Guest VLAN and auto VLAN
RADIUS for IPv4 and IPv6
TACACS+ for IPv4 and IPv6
MAB
DHCPv4/v6 DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82
DHCP Snooping/Option 82
Traffic Monitor sFlow Traffic Analysis
Security Network Management CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6
Syslog and external Syslog Server
HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP
SNTP/NTP
RMON 1,2,3,9
Authentication by Radius/TACACS
SSH v1/v2
Dual firmware images/Configuration files
802.3ah OAM, 802.1ag OAM
Data Center Features VSF (Virtual Switch Framework)
