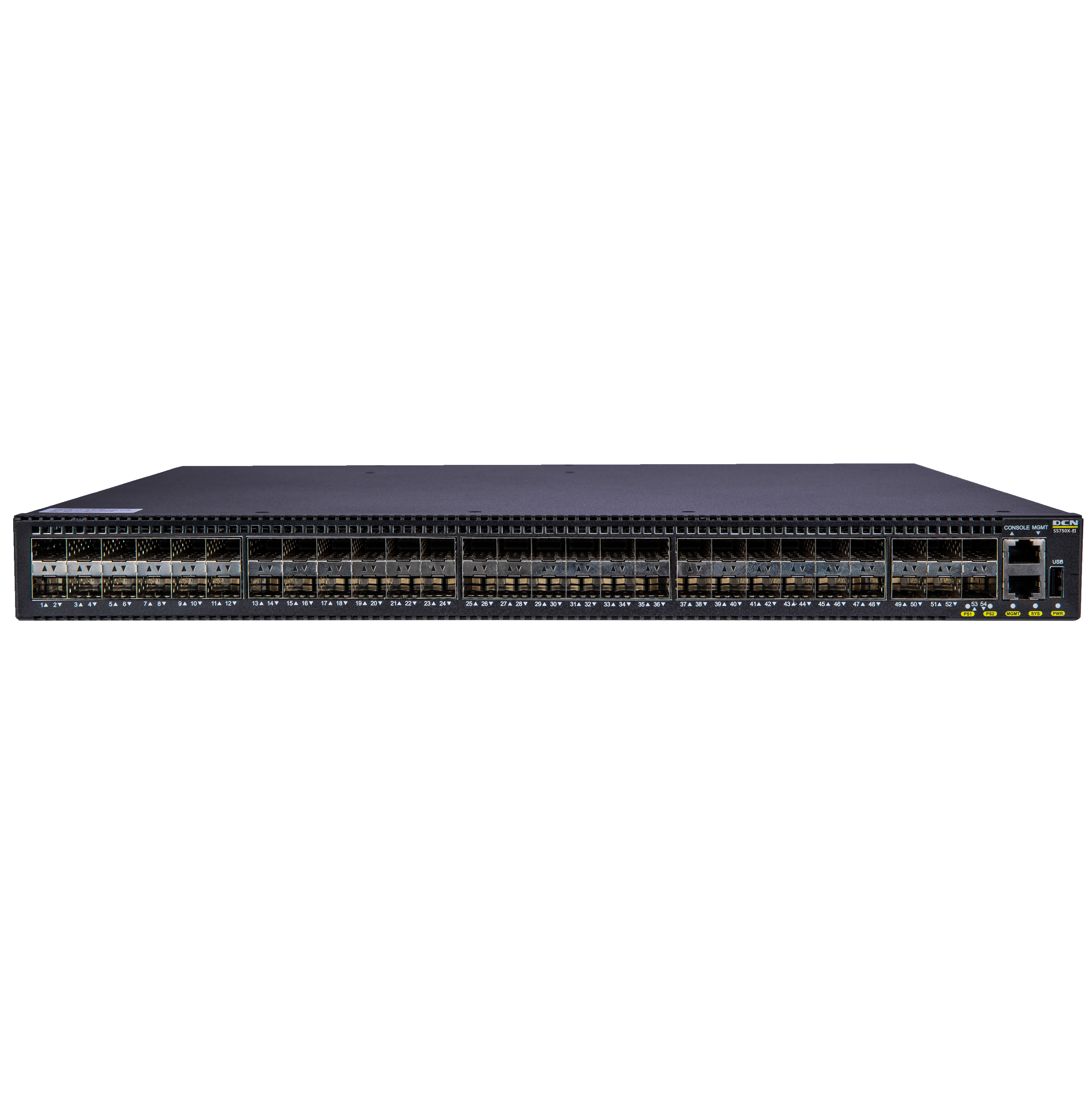

10G L3 Switch (48*100/1000Base-X(SFP) + 6*10GbE(SFP+)), Default with 1 modular AC Power and 1 optional AC Power M6200X-AC-100 for 1+1 reduancy (not support other power modules)
DCN- Yunke China Information Technology Limited
Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.
DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.
DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.
Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.
S5750X-48S6X-EI / S5750X-24S6X-EI Key Features and Highlights
S5750X series switches deliver high switching capacity, advanced L3 features, and robust multicast support, making them ideal for high-density aggregation or core layers in campus and enterprise networks. With VSF virtualization, comprehensive QoS, and enhanced IPv6 support, these switches provide reliable, scalable, and secure network solutions.
Key Features and Highlights
-
Performance and Scalability
With high switching capacity, S5750X series support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols.
The 10 Gigabit Ethernet connectivity of S5750X is accomplished via a hot-pluggable 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen). -
VSF (Virtual Switch Framework)
Virtual Switch Framework can virtualize multiple DCN switches into one logical device, achieving the sharing of information and data tables between different switches. The performance and ports density of the virtualized device is greatly enlarged by times under VSF. VSF also simplifies management work for the network administrator and provides more reliability. -
Rich L3 Features
S5750X series delivers high-performance, hardware-based IP routing. RIP, OSPF, ISIS and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With S5750X series, customers could easily achieve Policy-based Route (PBR), which is important when they need a multi exit application. -
Strong Multicast
S5750X series supports abundant multicast features. In Layer 2, such as IGMPv1/v2/v3 snooping and fast leave. L3 multicast protocols such as IGMPv1/v2/v3. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; S5750X series provides a great application experience for the customer. -
High-Reliability network
MRPP is a Multi-layer Ring Protection Protocol, which is DCN's private fast Ethernet ring protocol. Comparing to spanning tree protocol, it has the advantages of fast convergence, simple protocol calculation, fewer system resources cost, and so on, which can improve the reliability of Ethernet network operation. -
Comprehensive QoS
With 8 queues per port, S5750X series enable differentiated management of up to 8 traffic types. The traffic is prioritized according to IEEE802.1p, DSCP, IP precedence, and TCP/UDP port number, giving optimal performance to real-time applications such as voice and video.
S5750X series also supports Bi-directional rate-limiting, per port or traffic class preserves network bandwidth, and allows full control of network resources. -
Abundant IPv6 Support
S5750X series supports IPv6 switching and routing based on hardware for maximum performance. With increased network devices growing the need for larger addressing and higher security become critical, S5750X series will be the right product to meet this requirement.
S5750X-24S6X-EI / S5750X-48S6X-EI Technical Specifications
| Item | S5750X-24S6X-EI | S5750X-48S6X-EI |
|---|---|---|
| Physical port | 24*100/1000Base-X(SFP) + 6*10GbE(SFP+) | 48*100/1000Base-X(SFP) + 6*10GbE(SFP+) |
| Management port |
1 x RJ45 Ethernet Management port 1 x Console port 1 x USB2.0 wire/face |
|
| Performance | ||
| Switching Capacity | 168Gbps | 216Gbps |
| Forwarding rate | 125Mpps | 161Mpps |
| Jumbo Frame | 12K | 12K |
| MAC Address | 32K | 32K |
| ARP Table | 1K | 1K |
| Routing Table | 1K | 1K |
| ACL Table | 3K | 3K |
| Physical | ||
| Dimension (W*H*D) | 440mm x 44mm x 380mm | 440mm x 44mm x 380mm |
| Relative Humidity | 10%~95%, non-condensing | |
| Temperature | Working 0°C~50°C, storage -40°C~70°C | |
| Power Supply |
Modular AC100~240V/50, 50~60Hz Standard with AC; optional modular AC |
|
| Power Consumption | <45W | <65W |
| Main Features | ||
| L1 Features |
IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3ab(1000Base-TX), IEEE802.3z(1000Base-X), IEEE802.3ae(10GbE), IEEE802.3x(Flow Control), IEEE802.3az(Energy Efficient Ethernet), IEEE802.3ad(LACP), Console Port loopback detection LLDP and LLDP-MED UDLD IEEE 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance BPDU (S 802.3) |
|
| L2 Features |
N:1 Port Mirroring RSPAN IEEE802.1d(STP) IEEE802.1w(RSTP) IEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel Bandwidth Control IEEE 802.1Q, 4096 VLAN MAC VLAN, Voice VLAN, PLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping |
|
| L3 Features |
Port Security Flow Control: HOL, IEEE802.3x Bandwidth Control Static Routing, RIP v1/v2, OSPFv2, BGP4, OSPFv3, BGP4+ OSPF multiple processes Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF ECMP BFD IGMP v1/v2/v3, IGMP Proxy DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP Static Multicast Route Multicast Receive Control Illegal Multicast Source Detect ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan DNS Client, DNS Relay GRE Tunnel |
|
| IPv6 |
6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel ICMPv6, ND DNSv6, OSPFv3, BGP4+ MLD Snooping, IPv6 Multicast VLAN MLDv1/v2, IPv6 ACL, IPv6 QoS IPv6 DSCP |
|
| QoS |
8 Queues SP, WRR, SWRR, WDRR, SWDRR Traffic Classification Based on 802.1p, CoS, ToS, DiffServ DSCP, ACL, port number Traffic Policing PRI Mark/Remark |
|
| ACL |
IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence, VLAN, Tag/Untag, CoS Redirect and Statistics Rules can be configured to port, VLAN, VLAN routing interfaces Time Ranged ACL ACL rules can be configured to port, VLAN |
|
| Security |
IEEE 802.1x AAA Port, MAC-based authentication Accounting based on time length and traffic Guest VLAN and auto VLAN RADIUS for IPv4 and IPv6 TACACS+ for IPv4 and IPv6 MAB |
|
| DHCPv4/v6 |
DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 |
|
| Traffic Monitor | sFlow Traffic Analysis | |
| Security Network Management |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog Server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMON 1,2,3,9 Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/Configuration files 802.3ah OAM, 802.1ag OAM |
|
| Data Center Features | VSF (Virtual Switch Framework) | |
