DCN - Wall Mounted Access Points
DCN 802.11n indoor high power in-wall wireless AP (2.4GHz single band, 2*2, 300Mbps, internal antenna, 3* 100M Base-T port, PoE 15.4W, could be managed by DCN AP controller (PoE power only, no support for AC power input).
DCN- Yunke China Information Technology Limited
Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.
DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.
DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.
Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.

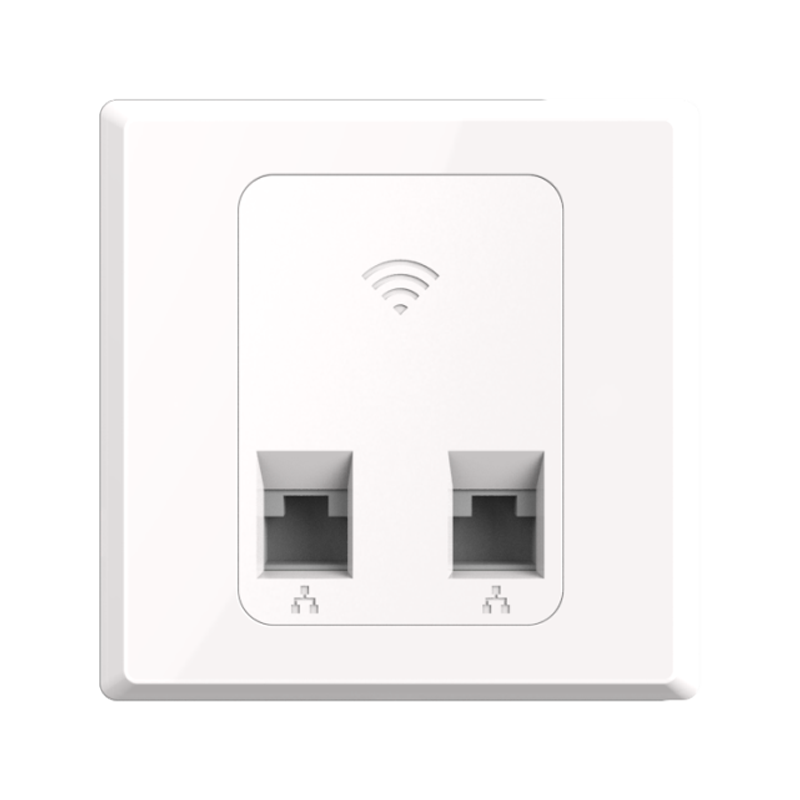

DCWL-2000WAP(R2.0) - Highlights
DCWL-2000WAP(R2) is a new-generation 802.11n based high cost-effective wireless access point (AP) released for the hospitality and education industry. DCWL-2000WAP(R2) supports 802.11n standard, single 2.4G band which could provide 300M bandwidth. It can be installed in a standard 86 panel without wall reconstruction and its thickness is only 22mme.
Key Features and Highlights
DCWL-2000WAP(R2) Hardware Specifications
| Item | DCWL-2000WAP(R2) |
|---|---|
| Dimension (L*W*D) (mm) | 86 × 86 × 22 |
| Ethernet ports | 1* 10/100MBase-T uplink port, 2 * 10/100M Base-T downlink ports |
| Power supply | 802.3af |
| Maximum power consumption | <6W |
| Antenna gain | 4dBi |
| Working frequency band | 802.11b/g/n: 2.4 GHz to 2.483 GHz |
| Modulation technology | 802.11b: BPSK, QPSK, CCK 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| Transmitting power | 17dBm |
| Power adjustment granularity | 1dBm |
| Working/Storage temperature | 0°C ~ 50°C / -40°C ~ 70°C |
| Working/Storage RH | 5% ~ 95% no condensing |
DCWL-2000WAP(R2) Software Specifications
| Item | Feature | DCWL-2000WAP(R2) |
|---|---|---|
| WLAN | Product positioning | In-wall single-band AP |
| Working frequency band | 2.4GHz | |
| Access bandwidth | 300Mbps | |
| Virtual AP (BSSID) | 16 | |
| Concurrent user | 30 | |
| Number of spatial streams | 2.4G: 2 | |
| Dynamic channel adjustment (DCA) | YES | |
| Transmit power control (TPC) | YES | |
| Blind area detection and repair | YES | |
| SSID hiding | YES | |
| RTS/CTS | YES | |
| RF environment scanning | YES | |
| Hybrid access | YES | |
| Restriction on the number of access users | YES | |
| Link integrity check | YES | |
| Forcing terminals to roam based on signal strength | Yes | |
| Intelligent control of terminals based on airtime fairness | YES | |
| Prohibiting the access of terminals with weak signals | YES | |
| Intelligent control of terminals based on airtime fairness | YES | |
| 802.11n enhancement | Number of spatial streams | 2.4G: 2 |
| Working frequency band | 2.4GHz | |
| 40 MHz bundling | YES | |
| 300 Mbps (PHY) | YES | |
| Frame aggregation (A-MPDU) | YES | |
| Frame aggregation (A-MSDU) | YES | |
| Maximum likelihood demodulation (MLD) | YES | |
| Transmit beamforming (TxBF) | YES | |
| Maximum ratio combining (MRC) | YES | |
| Space-time block coding (STBC) | YES | |
| Low-density parity-check code (LDPC) | YES | |
| Security | Encryption | YES 64/128WEP, TKIP, CCMP encryption |
| 802.11i | YES | |
| Portal authentication | Yes | |
| WAPI | YES | |
| MAC address authentication | YES | |
| LDAP authentication | YES | |
| PEAP authentication | YES | |
| WIDS/WIPS | YES | |
| Protection against DoS attacks | Anti-DoS for wireless management packets | |
| Forwarding security | Frame filtering, white list, static blacklist, and dynamic blacklist | |
| User isolation | AP L2 forwarding suppression Isolation between client |
|
| Periodic SSID enabling and disabling | YES | |
| Access control of free resources | YES | |
| Wireless SAVI | YES | |
| ACL | Access control of various data packets such as MAC, IPv4, and IPv6 packets | |
| Secure access control of APs | Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC | |
| 802.11W | Yes, encryption of management frames | |
| Forwarding | IP address setting | Static IP address configuration or dynamic DHCP address allocation |
| IPv6 forwarding | YES | |
| IPv6 portal | YES | |
| Local forwarding | YES | |
| Multicast | IGMP snooping | |
| Roaming | YES | |
| AP switching reference | Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc. | |
| WDS | YES | |
| QoS | WMM | YES |
| Priority mapping | Ethernet port 802.1P identification and marking Mapping from wireless priorities to wired priorities |
|
| QoS policy mapping | Mapping of different SSIDs/VLANs to different QoS policies Mapping of data streams that match with different packet fields to different QoS policies |
|
| L2-L4 packet filtering and flow classification | Yes: MAC, IPv4, and IPv6 packets | |
| Load balancing | Load balancing based on the number of users Load balancing based on user traffic Load balancing based on frequency bands |
|
| Bandwidth limit | Bandwidth limit based on APs Bandwidth limit based on SSIDs Bandwidth limit based on terminals Bandwidth limit based on specific data streams |
|
| Power saving mode | YES | |
| Automatic emergency mechanism of APs | YES | |
| Intelligent identification of terminals | YES | |
| Multicast enhancement | Multicast to unicast | |
| WMM | YES | |
| Management | Network management | Centralized management through an AC; both fit and fat modes |
| Maintenance mode | Both local and remote maintenance | |
| Log function | Local logs, Syslog, and log file export | |
| Alarm | YES | |
| Fault detection | YES | |
| Statistics | YES | |
| Switching between the fat and fit modes | An AP working in fit mode can switch to the fat mode through a wireless AC; An AP working in fat mode can switch to the fit mode through a local control port or Telnet. | |
| Remote probe analysis | Yes | |
| Watchdog | Yes | |
| Network management | Centralized management through an AC; both fit and fat modes | |
| Value added marketing | Support: various apps based on intelligent terminals, advertising push based on location, personalized push of portals | |
| Value added authentication | WeChat, SMS, QR code | |
| Passenger flow analysis | yes | yes |

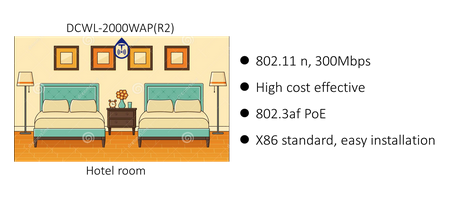

Typical Application
Order Information
| Product Model | Description |
|---|---|
| DCWL-2000WAP(R2) | 802.11n single-band wireless In-wall AP (support 2.4GHz, the maximum bandwidth 300Mbps, built-in antenna; support 1* 100M uplink port, 2 * 100M downlink ports, support 802.3af) |
